Specification
|
Camera |
Tpye
|

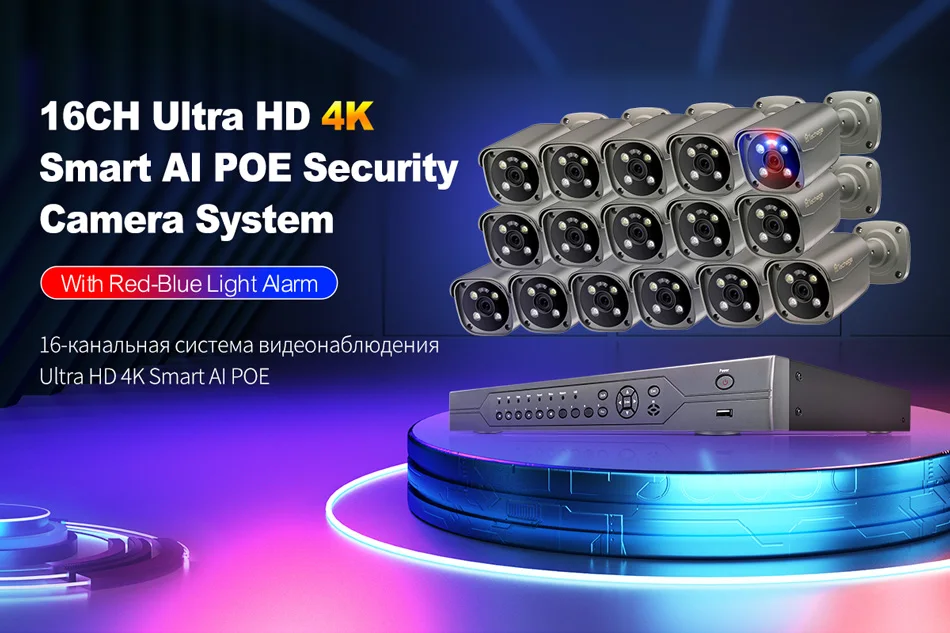

16CH 4K POE CAMERA KIT
|
|
Sensor type
|
1/2.7″ black-light CMOS sensor
|
|
|
Minimum illumination
|
Color: 0.0001Lux @f1.2
|
|
|
Black and white: 0.0001Lux @f1.2
|
||
|
Shutter
|
1/50(1/60) second to 1/10000 second
|
|
|
Lens
|
Hd lens 3.6mm @F2.0
|
|
|
Lens contact type
|
M12
|
|
|
Day-night switch mode
|
Support IR-CUT
|
|
|
Image |
Maximum image size
|
3840*2160
|
|
Frame rate
|
Main stream 8MP(3840*2160)@15fps 5MP(2880*1616)@25fps; 4MP(2560* 1440)@25fps; 2MP(1920*1080)@25fps: |
|
|
Auxiliary stream: (800*448)@25fps:
|
||
|
Image set
|
Saturation brightness and contrast are adjustable by client or browser
|
|
|
Compression |
Compression standard
|
H.265AI/H.265+(Compatible with H.265/H.264 )Video coding
|
|
Compressed output bit rate
|
0.1Mbps~8Mbps Adjustable
|
|
|
Audio compression standard
|
G711a
|
|
|
Network function |
Storage
|
Network storage
|
|
Intelligent alarm
|
Face detection, human motion tracking detection, video loss, network cable broken,IP address conflict
|
|
|
Support agreement
|
TCP/IP HTTP, DHCP DNS, DDNS, PPPoE, SMTP,NTP
|
|
|
General function
|
Anti-flicker, double code stream heartbeat, password protected
|
|
|
Interface |
Operation interface
|
16 – bit true color graphical menu operation interface, support mouse operation
|
|
Screen display
|
1 / 2 / 4 / 6 / 8 / 9 / 16 screen
|
|
|
Video |
Video access mode
|
16 channel 4K (access bandwidth 72 Mbit/s, connected to 100 MBIT/s POE module)
|
|
Image decoding
|
H.265AI/H.265+(compatible with H.265/H.264)
|
|
|
Monitoring quality
|
Max: 4K
|
|
|
Playback quality
|
4K/5MP/4MP/3MP/1080P
|
|
|
VR function
|
Not support
|
|
|
Human face detection
|
Support (rely on XM front end camera)
|
|
|
Audio |
Audio compression
|
G.711A
|
|
Language intercom
|
Not support
|
|
|
Video and playback |
Video mode
|
Manual > Alarm > Dynamic Detection > Timing
|
|
Local playback (real time + non real time)
|
4K (1* real-time) /5MP (1+1) /4MP (2+1) /3MP (3+1) /1080P (5+1)
|
|
|
Video query
|
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face query
|
|
|
Video preservation
|
Local hard disk, network
|
|
|
Backup mode
|
Network backup, USB mobile hard disk, USB recording, SATA recording
|
Details Images
Product Description
Main Features:
* Our NVR and Cameras All are Real H.265 Ultra HD 4K/8MP* All Cameras are Built-in Microphone and Speaker, Support Two-Way Audio Sound Recording.* AI Function,Support Motion Detection,Human Detection,Area Detection,Face Detection
* Our NVR and Cameras All are Real H.265 Ultra HD 4K/8MP* All Cameras are Built-in Microphone and Speaker, Support Two-Way Audio Sound Recording.* AI Function,Support Motion Detection,Human Detection,Area Detection,Face Detection
* Customized Voice Alarm: Reasonably Customize The Alarm Area You Want, Voice Alert.
* Double Light Night Vision:The Camera Can Be Set To Full Color Night Vision Like Day Vision.
* The AI Camera Support IP66 Waterproof.
Smart AI Red-Blue Light Alarm & Alarm Sound
When It Motion Detect , The 2pcs White Leds Will Light and with Red-Blue Light Alarm,Serve As a Warning Deterrent.
Note: Only when the app is opened will received the alarm
9 Kinds Alarm Sound for Option ( Only Support English Sound )
When Someone Breaks Into Shooting Area,
The Camera Will Make Alarm Sound Alarm Messages Will Be Pushed To Your Phone App.
When Someone Breaks Into Shooting Area,
The Camera Will Make Alarm Sound Alarm Messages Will Be Pushed To Your Phone App.
Human Detection & Smart E-mail Alerts
when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.

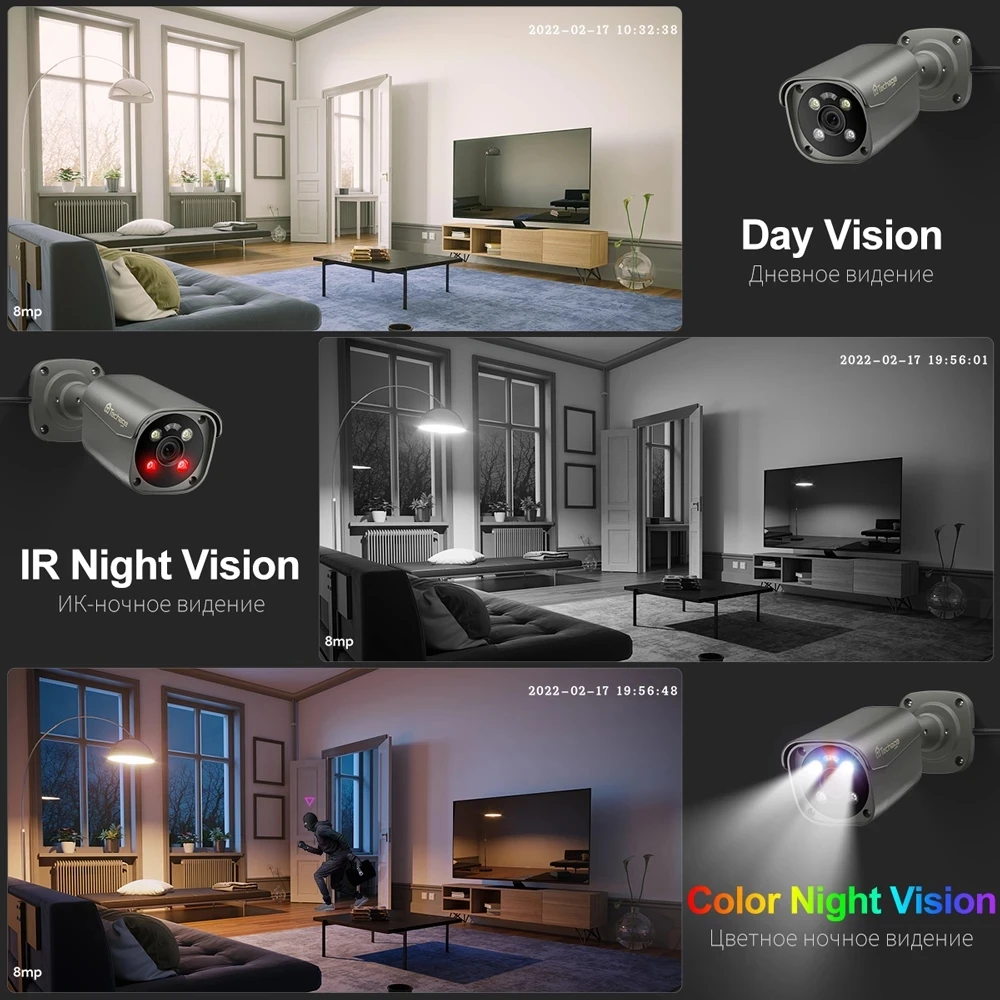

Full Color Night Vision
When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.
Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision.

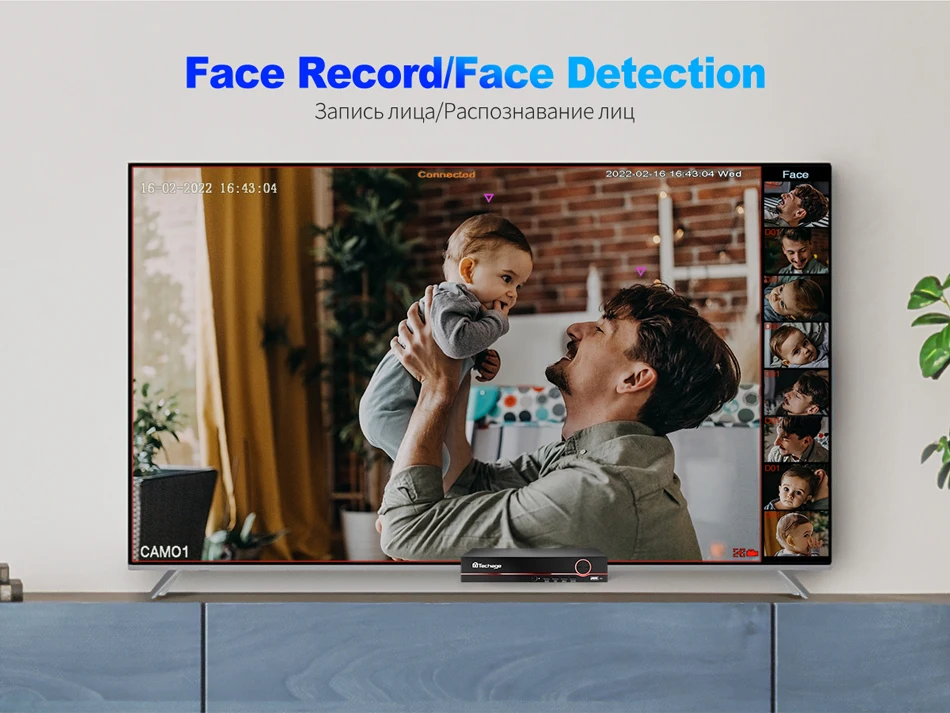

Face Record/Face Detection/Face Playback
When someone breaks into the shooting area and the face is captured by the camera, it will be recorded for you to review.

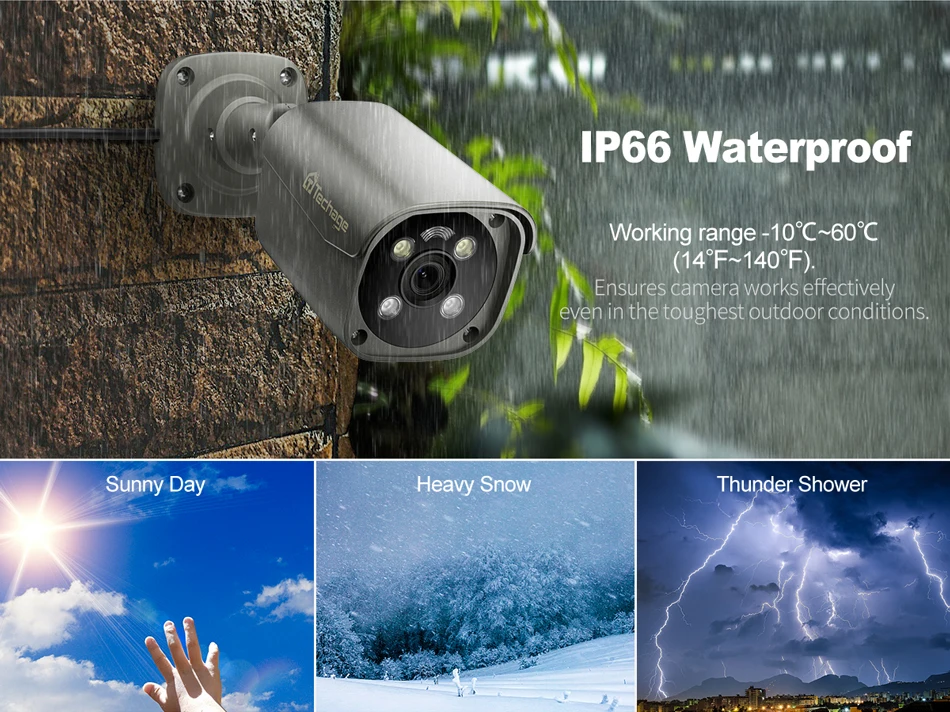

IP66 Outdoor Waterproof & Dustproof
The camera has a metal body and housing, with an IP66 waterproof rating.
It can stand harsh weather conditions, including rain, snow, intense cold and heat.
Save Your HDD Storage Space And Reduce Your Purchase Cost.
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.

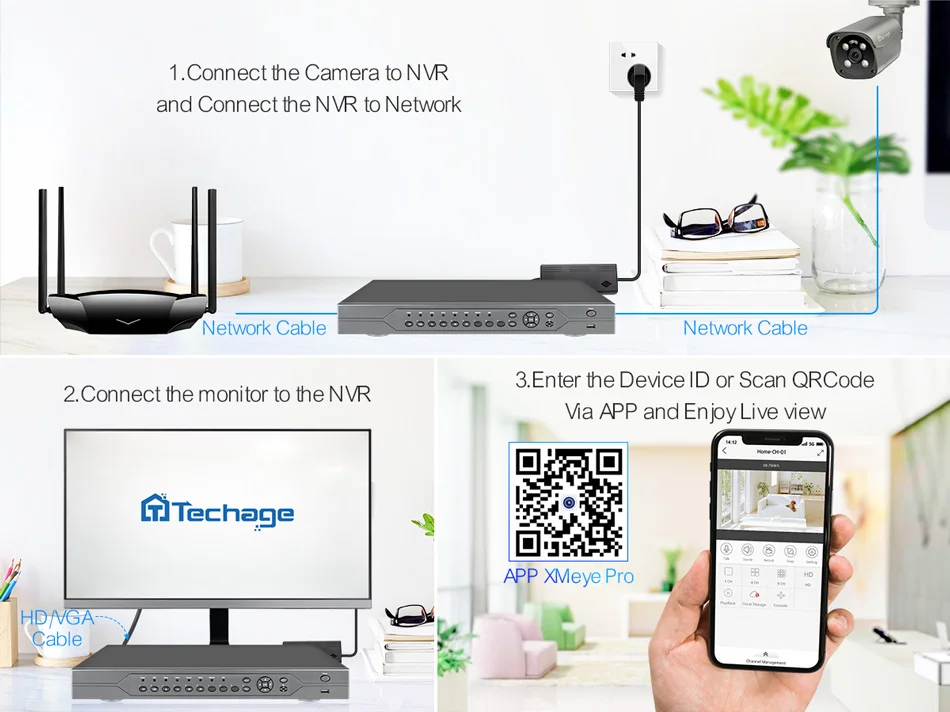

Easy to install
